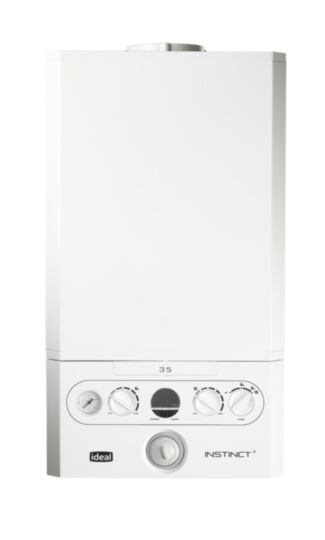

Instinct 2
30 Combi Boiler
220482
£1.00
£1.00
| Guarantee | 5 Years |
|---|---|
| DHW Output (kW) Max | 30.3 |
| DHW Flow Rate i/min. 35 Deg C Rise | 12.4 |
| SEDBUK (2009) % | 89 |
| Heat Exchanger Material | Aluminium |
| Suitable For Sealed Systems | Yes |
| Suitable For Open-vent Systems | No |
| In-built 75mm Condensate Trap / Siphon | Yes |
| In-built Boiler Frost Protection | Yes |
| Pump & Diverter Valve Exercise (24hr) | Yes |
| Max Horizontal | 8 |
| Max Vertical | 7.5 |
| CH Output (kW) Min / Max @ 70°C | 24.2-6.1 |
| CH Output (kW) Min / Max @ 40°C | 25.6-6.4 |
| Top (From top of Boiler) | 165mm |
| Side | 2.5mm |
| Bottom | 5*mm |
| Front | 5*mm |
| SEDBUK (2005) | 91.1 |
| NOx Classification | Class 6 |
| Adjustable to LPG | No |
| Burner Type | Ceramic |
| Fully Modulating | Yes |
| DHW Plate Heat Exchanger | Yes |
| Integrated Hydroblock | Yes |
| Expansion Vessel | Yes |
| Flow Regulator | Yes |
| In-Built System Bypass | Yes |
| Anticycling | Yes |
| User Display | Dual 7 Segment |
| User Controls | Buttons and Dials |
| Diagnostics | Fault Code Diagnostics |
| In-built Programmer | 24hr mechanical |
| Pressure Gauge | Yes |
| Weather Compensation Kit | Yes |
| CE Marking | Yes |
|---|---|
| EN Number | 15502 |
| WRAS Approved | Yes |
| Width | 410mm |
|---|---|
| Weight | 33kg |
| Height | 889mm |
|---|---|
| Width | 395mm |
| Depth | 295mm |
| Weight | 29.3kg |
