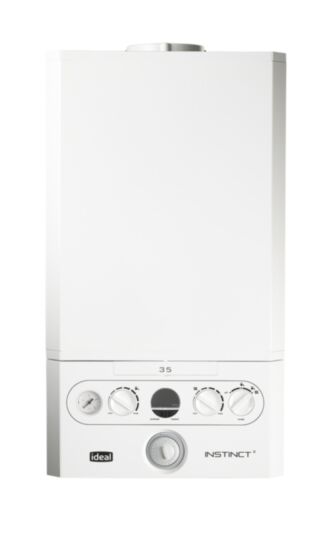

Instinct 2

24 Combi Boiler
220481
£1.00 £1.00
  • 5 Year Guarantee
  • Compact Cupboard Fit
  • Low Fit Weight
  • OpenTherm Ready
  • Easy Read Pressure Gauge
  • NOx Class 6
  • Frost Protection
  • Improved Digital Display
More Information
Guarantee 5 Years
DHW Output (kW) Max 24.2
DHW Flow Rate i/min. 35 Deg C Rise 9.9
SEDBUK (2009) % 89
Heat Exchanger Material Aluminium
Suitable For Sealed Systems Yes
Suitable For Open-vent Systems No
In-built 75mm Condensate Trap / Siphon Yes
In-built Boiler Frost Protection Yes
Pump & Diverter Valve Exercise (24hr) Yes
Max Horizontal 9
Max Vertical 7.5
CH Output (kW) Min / Max @ 70°C 24.2-4.8
CH Output (kW) Min / Max @ 40°C 25.6-5.1
Top (From top of Boiler) 165mm
Side 2.5mm
Bottom 5*mm
Front 5*mm
SEDBUK (2005) 91
NOx Classification Class 6
Adjustable to LPG No
Burner Type Ceramic
Fully Modulating Yes
DHW Plate Heat Exchanger Yes
Integrated Hydroblock Yes
Expansion Vessel Yes
Flow Regulator Yes
In-Built System Bypass Yes
Anticycling Yes
User Display Dual 7 Segment
User Controls Buttons and Dials
Diagnostics Fault Code Diagnostics
In-built Programmer 24hr mechanical
Pressure Gauge Yes
Weather Compensation Kit Yes
CE Marking Yes
EN Number 15502
WRAS Approved Yes
Packaged
Width 410mm
Weight 33kg
Product
Height 889mm
Width 395mm
Depth 295mm
Weight 29.3kg
