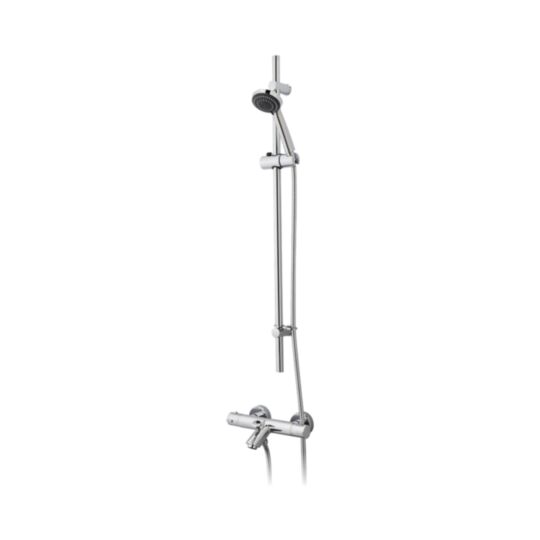

main product photo

Tummel

Twin Outlet Thermostatic Shower Valve + Kit
INST-13003P
£1.00 £1.00
  • 5 Year Guarantee
  • Medium Pressure
  • Wall Mounted Shower
  • Deck Mounted Shower
  • Bar Shower
  • Single Outlet Shower
  • Slide Rail
  • Three Function Shower Handset
  • Stainless Steel Shower Hose
  • Anti Scald Technology
  • Fast Fix
  • Rub Clean Nozzle
More Information
Guarantee 5 Years
Hose Material Stainless Steal
Flow Restrictor No
Max Static Pressure 5.0 Bar
Hose Bore 8mm
Handset Rub Clean Yes
Fast Fix Kit Supplied Yes
Valve Inlet Centre 180mm/(150mm-Wall Mounted)
Valve Connection Dimension ¾"(15mm-Wall Mounted)
Safety Stop set at 38°C
Adjustable Riser Rail Yes
No of Handset Functions Three
Min Operating Pressure 0.5 Bar
Max Operating Pressure 5.0 Bar
Hose Type Standard
Hose Length 2000mm
Hose Connection Type Nut / Cone
Overhead Material ABDS
Handset Material ABS
Valve Handle Material ABS
Cool Body No
Body Material Brass
Max Operating Temperature 85°C
CE Marking Yes
DOP Yes
British Standard Yes
WRAS Approved Yes
WRAS Number 2017092
TMV Level TMV2
Packaged
Height 950mm
Width 310mm
Depth 100mm
Weight 3.86kg
Product
Height 900mm (Riser Rail)
Width 265mm
Weight 5kg
