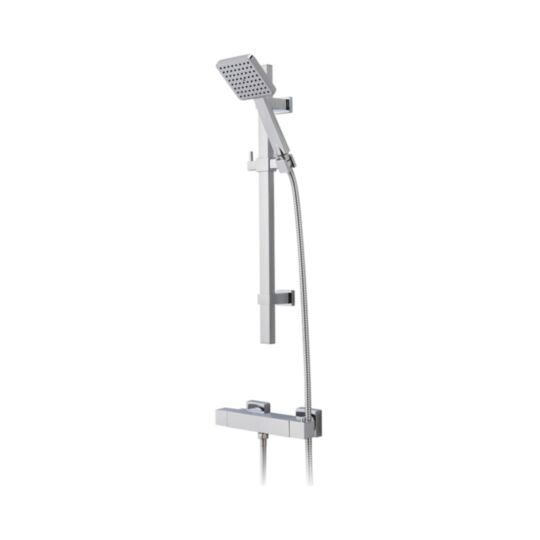

main product photo

Laidon

Single Outlet Thermostatic Shower Valve + Kit
INST-13006P
£1.00 £1.00
  • 5 Year Guarantee
  • Medium Pressure
  • Wall Mounted Shower
  • Bar Shower
  • Single Outlet Shower
  • Slide Rail
  • Single Function Shower Handset
  • Stainless Steel Shower Hose
  • Anti Scald Technology
  • Fast Fix
  • Rub Clean Nozzle
More Information
Guarantee 5 Years
Hose Material Stainless Steal
Flow Restrictor No
Max Static Pressure 5.0 Bar
Hose Bore 8mm
Handset Rub Clean Yes
Fast Fix Kit Supplied Yes
Valve Inlet Centre 150mm
Valve Connection Dimension 15mm
Safety Stop set at 38°C
Adjustable Riser Rail Yes
No of Handset Functions One
Min Operating Pressure 0.5 Bar
Max Operating Pressure 5.0 Bar
Hose Type Standard
Hose Length 1500mm
Hose Connection Type Nut / Cone
Overhead Material ABS
Handset Material ABS
Valve Handle Material ABS
Cool Body No
Body Material Brass
Max Operating Temperature 85°C
CE Marking Yes
DOP Yes
British Standard Yes
WRAS Approved Yes
WRAS Number 2010037
TMV Level TMV2
Packaged
Height 625mm
Width 150mm
Depth 75mm
Weight 3.1kg
Product
Height 600mm (Riser Rail)
Width 263mm
Weight 2.7kg
