Instinct Pro

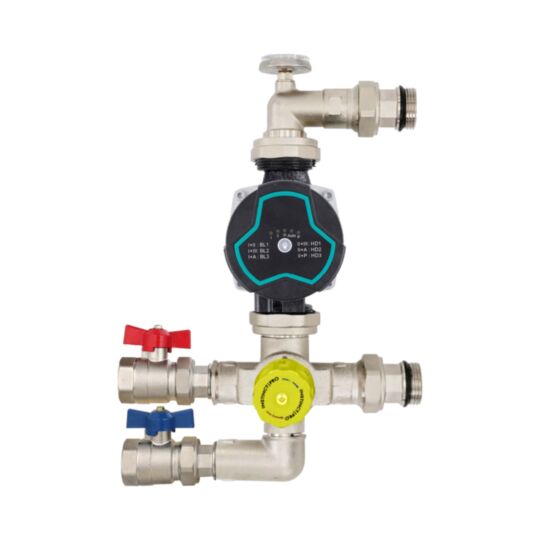

UFH Blending Valve + Pump Pack (Bastion Pump)

IN-2536J+BAS-PUMP

£1.00 £1.00

More Information
Guarantee	5 Years
Springs Material	Stainless Steel
Maximum Working Pressure	6 Bar (10 Bar for system testing)
Maximum Temperature Range	90°C
Seal Material	EPDM
O-Rings Material	EPDM
Adjustable Control Temperature Range	35 to 60°C
Thread Connections	BS EN ISO 228-1
Kv Value	2.8m3/h Dp = 1 Bar; Tmix = 45°C
Energy Efficiency Index (EEI)	≤ 0.20
Maximum Delivery Head	6m
Maximum Volume Flow	3.0m3/h
Body Material	Nickel Plated Brass
