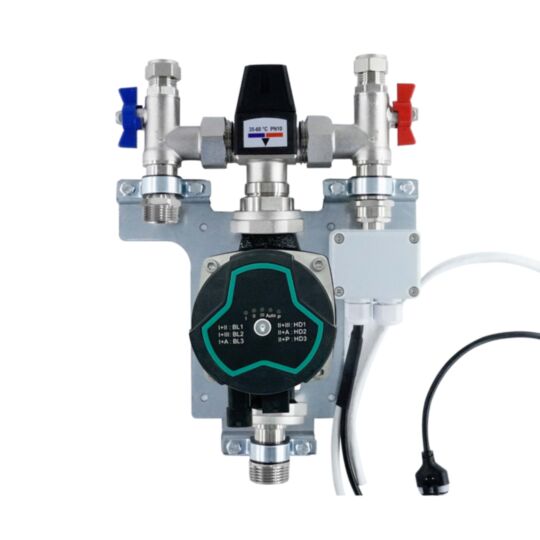

main product photo

Instinct Pro

UFH Single Room Control Pump Pack (Bastion Pump)
IN-2532J+BAS-PUMP
£1.00 £1.00
  • 5 Year Guarantee
  • Pre Assembled
  • Temperature Gauge
  • IP44 Rated
More Information
Guarantee 5 Years
Maximum Working Pressure 10 Bar
Maximum Temperature Range 90°C
Supply Voltage 220~240V,50/60Hz
Insulation Class H
Relative Humidity Max95%
System Load Bearing 1.0MPa
Adjustable Control Temperature Range 35 to 60°C
Thread Connections BS EN ISO 228-1
Kv Value 2.8m3/h Dp = 1 Bar; Tmix = 45°C
EMC Standard EN61000-6-1 EN61000-6-3
Sound Pressure Level Lower than 42dB(A)
Ambient Temperature 0 to 70°C
Temperature Grade Max. 125°C
Liquid Temperature 2 to 110°C
Energy Efficiency Index (EEI) ≤ 0.20
Maximum Delivery Head 6m
Maximum Volume Flow 3.0m3/h
Packaged
Height 345mm
Width 250mm
Depth 140mm
Weight 5.265kg
Product
Height 312mm
Width 229mm
Depth 132mm
Weight 4.265kg
