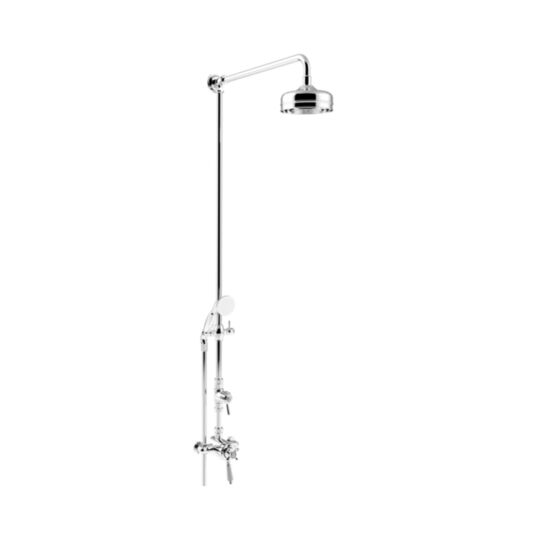

main product photo

Hemsworth

Dual Control Shower (Diverter + Rigid Riser)
INSHDEV003
£1.00 £1.00
  • 5 Year Guarantee
  • Minimum 0.1 Bar Operating Pressure
  • Maximum 5 Bar Operating Pressure
  • 38 Degrees Thermostatic Valve
  • Single Function Shower Handset
  • Overhead Soaker
More Information
Guarantee 5 Years
Hose Material Plastic & Stainless Steel
Flow Restrictor Yes
Max Static Pressure 10 Bar
Hose Bore 8mm
Handset Rub Clean No
Adjustable Fixing Riser Rail No
Fast Fix Kit Supplied No
Valve Inlet Centre 136-158mm
Valve Connection Dimension 15mm
Safety Stop set at 42°C
Outlet Connections G 1/2"
Overhead Fixed or Adjustable Fixed
No of Handset Functions One
Min Operating Pressure 0.1 Bar
Max Operating Pressure 5.0 Bar
Hose Type Standard
Hose Length 1250mm
Hose Connection Type Cone to nut
Overhead Material Metal
Overhead Size 145mm
Shower Arm Length 560mm
Handset Material Brass
Valve Handle Material Mazak
Cool Body No
Body Material Brass
Max Operating Temperature 80°C
CE Number No
WRAS Approved Yes
WRAS Number 1901904
Water Label Yes
Water Label Rating 14.5l/min
TMV Level No
Packaged
Height 1140mm
Width 250mm
Depth 160mm
Weight 4.75kg
Product
Height 1290mm
Width 200mm
Depth 138mm
Weight 2.96kg
