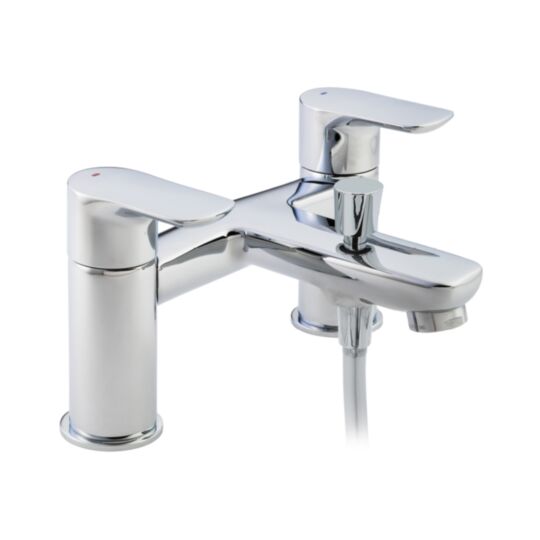

Elion

Bath Shower Mixer + Kit (Two Taphole)
4E1286
£1.00 £1.00
  • 10 Year Guarantee
  • Low Pressure
  • Minimum 0.1 Bar Operating Pressure
  • Flow Straightener
  • Flow Aerator
  • Brass Backnut
More Information
Guarantee 10 Years
Spout Material Brass
Fittings Brass Backnut + Washer
Connection ¾" BSP Threaded Tail
Flow Restrictors Supplied No
Max Static Pressure 25 Bar
Cartridge Size ¾" QT headwork
Min Operating Pressure 0.1 Bar
Max Operating Pressure 60°C
Body Material Brass
WRAS Approved WRAS
WRAS Number 2010088
Water Label 11
Water Label Rating 11.0 l/min @ 0.2 bar
Packaged
Height 187mm
Width 228mm
Depth 289mm
Weight 3.1kg
Product
Height 127mm
Width 230mm
Depth 168mm
Weight 2.8kg
