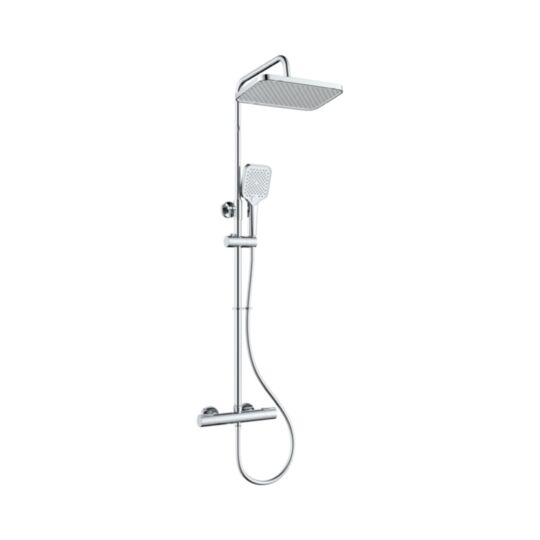

main product photo

Azerley

Thermostatic Twin Outlet Bar Shower Mixer
INST13229CP
£1.00 £1.00
  • 10 Year Guarantee
  • Medium Pressure
  • Wall Mounted Shower
  • Bar Shower
  • Twin Outlet Shower
  • Telescopic Riser Rail
  • Slide Rail
  • Three Function Shower Handset
  • Overhead Soaker
  • Smooth Shower Hose Icon
  • Cool Touch
  • Anti Scald Technology
  • Fast Fix
  • Rub Clean Nozzle
More Information
Guarantee 10 Years
Hose Material Smooth PVC
Flow Restrictor No
Max Static Pressure 10 Bar
Hose Bore 10mm
Handset Rub Clean Yes
Fast Fix Kit Supplied Yes
Valve Inlet Centre 150mm
Valve Connection Dimension 15mm
Safety Stop set at 38°C
Adjustable Riser Rail Yes
Overhead Fixed or Adjustable Adjustable
No of Handset Functions Three
Min Operating Pressure 0.5 Bar
Max Operating Pressure 5.0 Bar
Hose Type Standard
Hose Length 1500mm
Hose Connection Type Nut / Cone
Overhead Material ABS
Overhead Size 315 x 195mm
Shower Arm Length 345mm
Handset Material ABS
Valve Handle Material Zinc
Cool Body Yes
Body Material Brass
Max Operating Temperature 85°C
CE Marking Yes
WRAS Approved Yes
WRAS Number 2010037 - Valve Only
TMV Level TMV2
Packaged
Height 88mm
Width 395mm
Depth 900mm
Weight 5.3kg
Product
Width 307mm
Depth 870-1200mm
Weight 4.1kg
