main product photo

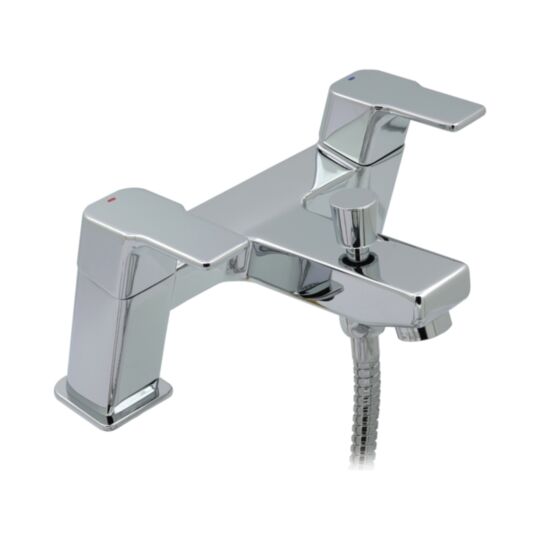

S12 Square

Bath Shower Mixer + Kit (Two Taphole)
4E6017
£1.00 £1.00
  • 10 Year Guarantee
  • Low Pressure
  • Minimum 0.1 Bar Operating Pressure
  • Flow Straightener
  • Flow Aerator
  • Metal Backnut
More Information
Guarantee 10 Years
Spout Material Brass
Fittings Metal Backnut + Washer
Connection ¾" BSP Threaded Tail
Flow Restrictors Supplied No
Max Static Pressure 25 Bar
Cartridge Size ½" QT headwork
Min Operating Pressure 0.1 Bar
Max Operating Pressure 60°C
Body Material Brass
WRAS Approved WRAS
WRAS Number 2111386
Water Label 11.6
Water Label Rating 11.6 l /min @ 0.2 bar
Packaged
Height 187mm
Width 228mm
Depth 289mm
Weight 3kg
Product
Height 129mm
Width 230mm
Depth 172mm
Weight 2.7kg
