main product photo

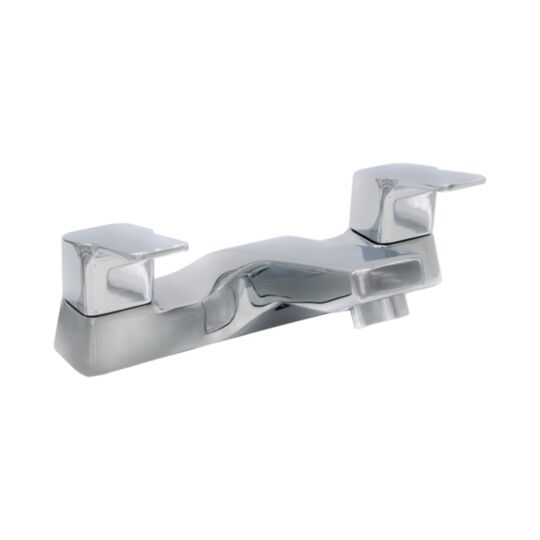

S12 Square

Bath Filler (Two Taphole)
4E6014
£1.00 £1.00
  • 10 Year Guarantee
  • Low Pressure
  • Minimum 0.1 Bar Operating Pressure
  • Flow Straightener
  • Metal Backnut
More Information
Guarantee 10 Years
Spout Material Brass
Fittings Metal Backnut + Washer
Connection ¾" BSP Threaded Tail
Flow Restrictors Supplied No
Max Static Pressure 25 Bar
Cartridge Size ½" QT headwork
Min Operating Pressure 0.1 Bar
Max Operating Pressure 60°C
Body Material Brass
WRAS Approved WRAS
WRAS Number 2109382
Water Label 14.8
Water Label Rating 14.8 l /min @ 0.2 bar
Packaged
Height 170mm
Width 169mm
Depth 243mm
Weight 2.2kg
Product
Height 84mm
Width 230mm
Depth 157mm
Weight 2kg

Supporting Documents
