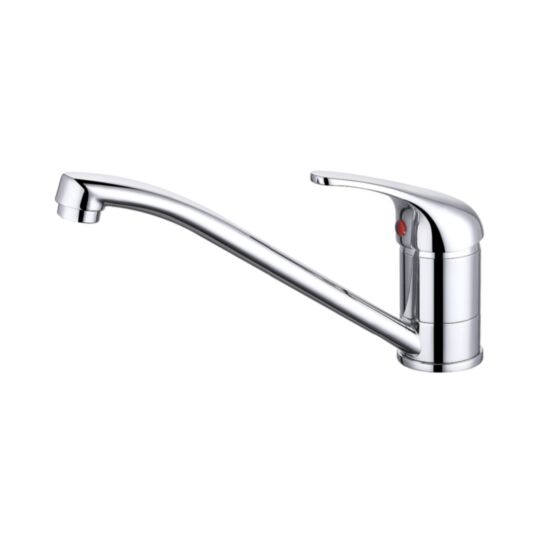

main product photo

S12 Eco

Single Lever Mono Kitchen Mixer
INST-S12-EC
£1.00 £1.00
  • 5 Year Guarantee
  • Low Pressure
  • Flow Aerator
  • Flexible Hose
More Information
Guarantee 5 Years
Spout Material Brass
Fittings Metal plate, washer, stud + locking nut
Connection M12 - DN8 flexible hoses -½” BSP threaded ends
Flow Restrictors Supplied No
Max Static Pressure 8 Bar
Cartridge Size #40 Cartridge
Min Operating Pressure 0.2 Bar
Max Operating Pressure 80°C
Body Material Brass
Packaged
Height 106mm
Width 84mm
Depth 380mm
Weight 1kg
Product
Height 148mm
Width 52mm
Depth 270mm
Weight 0.68kg
