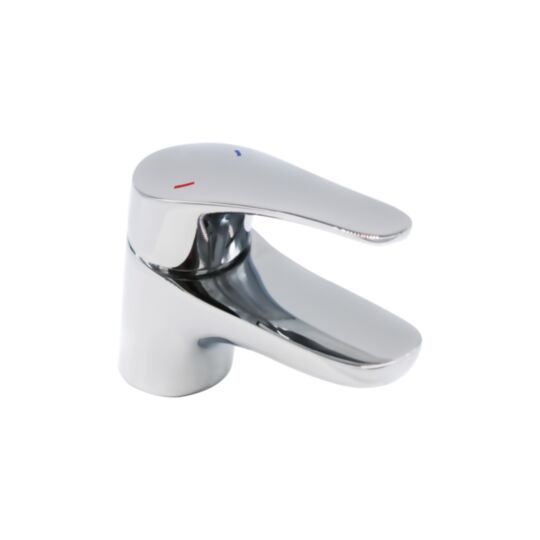

S12 Curve

Mono Basin Mixer (No Waste)
4E6003
£1.00 £1.00
  • 10 Year Guarantee
  • Low Pressure
  • Minimum 0.1 Bar Operating Pressure
  • Flow Straightener
  • Flexible Hose
More Information
Guarantee 10 Years
Spout Material Brass
Fittings Metal Plate, Washer, Stud + Locking Nut
Connection M10 - DN8 Flexible hoses with ½" BSP thread ends
Flow Restrictors Supplied No
Max Static Pressure 16 Bar
Cartridge Size #35 Cartridge
Min Operating Pressure 0.1 Bar
Max Operating Pressure 65°C
Body Material Brass
WRAS Approved WRAS
WRAS Number 2107336
Water Label 5.3
Water Label Rating 5.3 l /min @ 0.2 bar
Packaged
Height 87mm
Width 167mm
Depth 245mm
Weight 1.1kg
Product
Height 114mm
Width 45mm
Depth 142mm
Weight 0.9kg

Supporting Documents
