S12

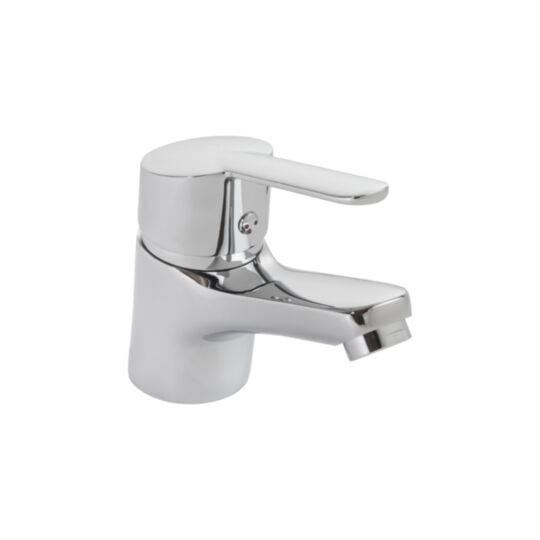

Mono Basin Mixer (No Waste)
4S1255
£1.00 £1.00
  • 10 Year Guarantee
  • Low Pressure
  • Minimum 0.1 Bar Operating Pressure
  • Flow Straightener
  • Flow Aerator
  • Flexible Hose
More Information
Guarantee 10 Years
Spout Material Brass
Fittings Metal Plate, Washer, Stud + Locking Nut
Connection M10 - DN8 Flexible hoses with ½" BSP thread ends
Flow Restrictors Supplied No
Max Static Pressure 16 Bar
Cartridge Size #40 Cartridge
Min Operating Pressure 0.1 Bar
Max Operating Pressure 60°C
Body Material Brass
WRAS Approved WRAS
WRAS Number 2004074
Water Label 5
Water Label Rating 5.0 l/min @ 0.2 bar
Packaged
Height 53mm
Width 169mm
Depth 198mm
Weight 1.1kg
Product
Height 114mm
Width 49mm
Depth 138mm
Weight 1.03kg
