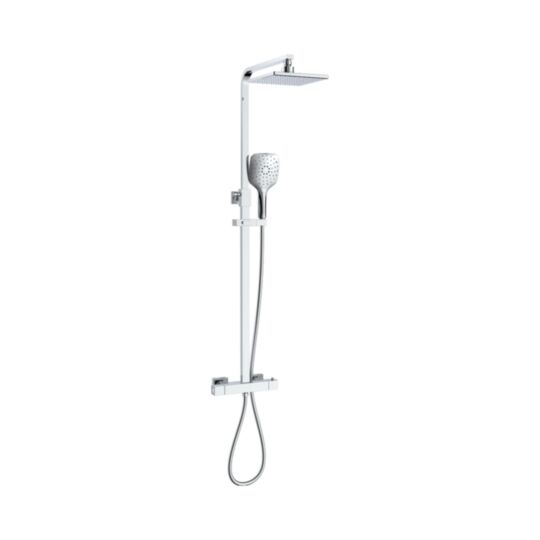

Milos

Thermostatic Twin Outlet Bar Shower Mixer
INST13226CP
£1.00 £1.00
  • 10 Year Guarantee
  • Medium Pressure
  • Wall Mounted Shower
  • Bar Shower
  • Twin Outlet Shower
  • Telescopic Riser Rail
  • Slide Rail
  • Three Function Shower Handset
  • Overhead Soaker
  • Smooth Shower Hose Icon
  • Anti Scald Technology
  • Fast Fix
  • Rub Clean Nozzle
More Information
Guarantee 10 Years
Hose Material Smooth PVC
Flow Restrictor No
Max Static Pressure 10 Bar
Hose Bore 10mm
Handset Rub Clean Yes
Fast Fix Kit Supplied Yes
Valve Inlet Centre 150mm
Valve Connection Dimension 15mm
Safety Stop set at 38°C
Adjustable Riser Rail No
Overhead Fixed or Adjustable Adjustable
No of Handset Functions Three
Min Operating Pressure 0.5 Bar
Max Operating Pressure 5.0 Bar
Hose Type Standard
Hose Length 1500mm
Hose Connection Type Nut / Cone
Overhead Material ABS
Overhead Size 200mm
Shower Arm Length 330mm
Handset Material ABS
Valve Handle Material Zinc
Cool Body No
Body Material Brass
Max Operating Temperature 85°C
CE Marking Yes
WRAS Approved Yes
WRAS Number 2010037 - Valve Only
TMV Level TMV2
Packaged
Height 58mm
Width 415mm
Depth 755mm
Weight 5kg
Product
Width 286mm
Depth 800-1180mm
Weight 4kg
