Instinct Pro

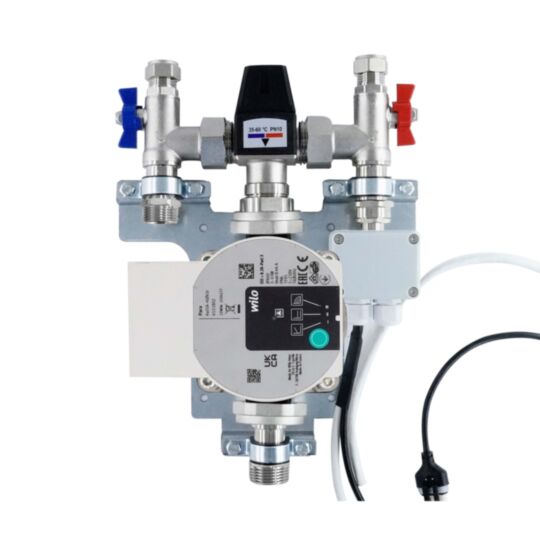

UFH Single Room Control Pump Pack (Wilo Pump)

IN-2532J+WILO-PUMP

£1.00 £1.00

More Information
Guarantee	5 Years on Blending Valve. 2 Years on Wilo Pump
Maximum Working Pressure	10 Bar
Maximum Temperature Range	90°C
Supply Voltage	220~240V,50/60Hz
Insulation Class	H
Relative Humidity	Max95%
System Load Bearing	1.0MPa
Adjustable Control Temperature Range	35 to 60°C
Thread Connections	BS EN ISO 228-1
Kv Value	2.8m3/h Dp = 1 Bar; Tmix = 45°C
EMC Standard	EN61000-6-1 EN61000-6-3
Sound Pressure Level	Lower than 42dB(A)
Ambient Temperature	0 to 70°C
Temperature Grade	Max. 125°C
Liquid Temperature	2 to 110°C
Energy Efficiency Index (EEI)	≤ 0.20
Maximum Delivery Head	6m
Maximum Volume Flow	2.6m3/h
