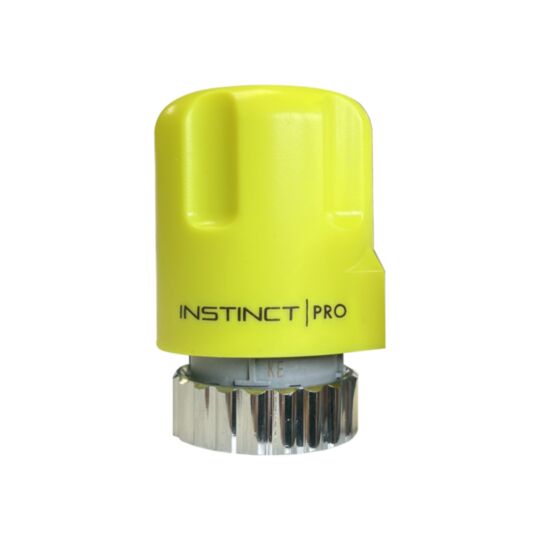

Instinct Pro

230V UFH Actuator
IN-2033-230V
£1.00 £1.00
More Information
Guarantee 5 Years
Power Consumption 2W
Maximum Inrush Current < 200mA during 100ms max
Operating Power 2W
Stroke (Actuator Travel) 3mm
Actuating Force 100 N + 10%
Storage Temperature minus 25ºC + 60ºC
Degree of Protection II
Type of Protection IP54
CE Conformity EN 60730 EN 61000
Connecting Cable / Colour 2 x 0.5mm PVC / Light Grey
Cable Length 1m
Surge Protection According to EN60335-1 2.5kV
Packaged
Height 75mm
Width 50mm
Depth 65mm
Weight 0.15kg
Product
Height 62mm
Width 42mm
Depth 42mm
Weight 0.114kg
