main product photo

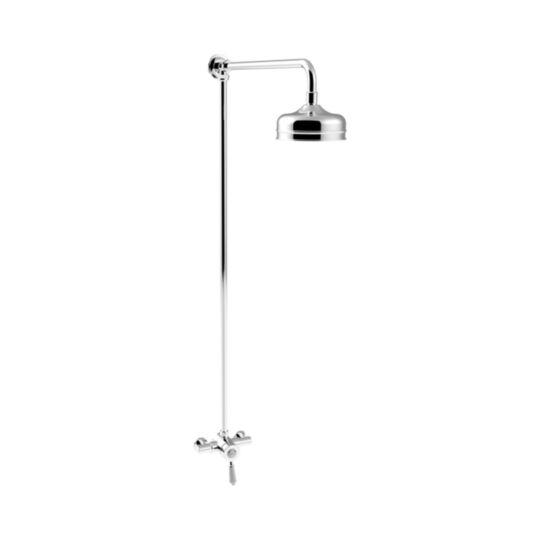

Hemsworth

Single Control Shower (Rigid Riser)
INSHEV0001
£1.00 £1.00
  • 5 Year Guarantee
  • Minimum 0.1 Bar Operating Pressure
  • Maximum 5 Bar Operating Pressure
  • 38 Degrees Thermostatic Valve
  • Overhead Soaker
More Information
Guarantee 5 Years
Flow Restrictor Yes
Max Static Pressure 10 Bar
Adjustable Fixing Riser Rail No
Fast Fix Kit Supplied No
Valve Inlet Centre 110-155mm
Valve Connection Dimension 15mm
Safety Stop set at 42°C
Outlet Connections G 1/2"
Overhead Fixed or Adjustable Fixed
Min Operating Pressure 0.1 Bar
Max Operating Pressure 5.0 Bar
Overhead Material Metal
Overhead Size 115mm
Shower Arm Length 380mm
Valve Handle Material Mazak
Cool Body No
Body Material Brass
Max Operating Temperature 80°C
CE Number No
WRAS Approved Yes
WRAS Number 1904909
Water Label Yes
Water Label Rating 7.5l/min
TMV Level No
Packaged
Height 630mm
Width 265mm
Depth 190mm
Weight 4.2kg
Product
Height 976mm
Width 200mm
Depth 115mm
Weight 3.18kg
