Helme

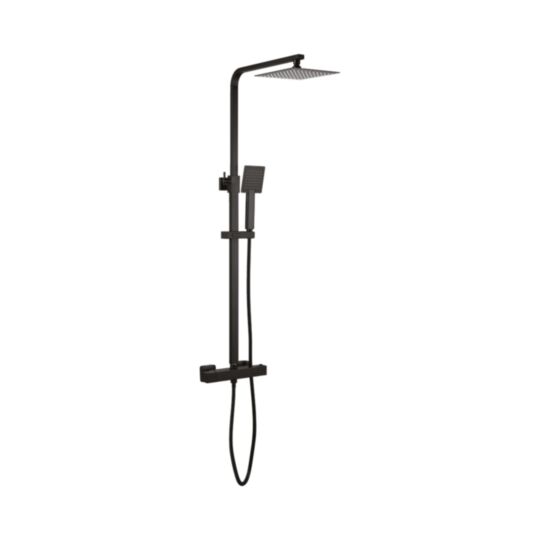

Square Twin Outlet Thermostatic Bar Shower Mixer
INSHE1011
£1.00 £1.00
  • 2 Year Guarantee
  • Minimum 0.2 Bar Operating Pressure
  • Maximum 5 Bar Operating Pressure
  • 38 Degrees Thermostatic Valve
  • Fast Fix
  • Telescopic Riser Rail
  • Slide Rail
More Information
Guarantee 2 Years
Flow Restrictor No
Hose Bore 8mm
Handset Rub Clean No
Adjustable Fixing Riser Rail Yes
Fast Fix Kit Supplied Yes
Valve Inlet Centre 180mm
Valve Connection Dimension G1/2" Thread
Safety Stop set at 38°C
Overhead Fixed or Adjustable Adjustable
No of Handset Functions One
Min Operating Pressure 0.2 Bar
Max Operating Pressure 5.0 Bar
Hose Type Stainless Steel
Hose Length 150mm
Hose Connection Type G1/2" Thread
Overhead Material Stainless Steel
Overhead Size 200mm
Shower Arm Length 345mm
Handset Material ABS
Valve Handle Material ABS
Cool Body No
CE Marking No
DOP No
British Standard Yes
EN Number EN1111
WRAS Approved Yes
WRAS Number 1906139
Water Label No
EUTR No
TMV Level No
Packaged
Height 95mm
Width 410mm
Depth 860mm
Weight 4.6kg
Product
Height 770-1200mm
Width 261mm
Depth 345mm
Weight 4.351kg

Supporting Documents
