Harris

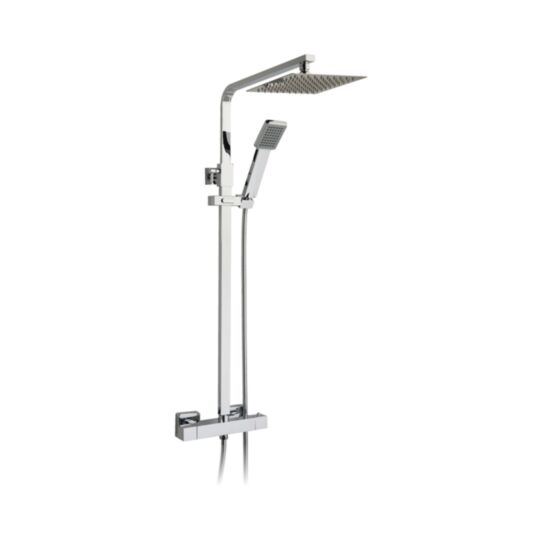

Twin Outlet Thermostatic Shower Valve + Kit
INST-13126P
£1.00 £1.00
  • 5 Year Guarantee
  • Medium Pressure
  • Wall Mounted Shower
  • Bar Shower
  • Twin Outlet Shower
  • Telescopic Riser Rail
  • Slide Rail
  • Single Function Shower Handset
  • Overhead Soaker
  • Stainless Steel Shower Hose
  • Anti Scald Technology
  • Fast Fix
  • Rub Clean Nozzle
More Information
Guarantee 5 Years
Hose Material Stainless Steal
Flow Restrictor No
Max Static Pressure 5.0 Bar
Hose Bore 8mm
Handset Rub Clean Yes
Fast Fix Kit Supplied Yes
Valve Inlet Centre 150mm
Valve Connection Dimension 15mm
Safety Stop set at 38°C
Adjustable Riser Rail No
Overhead Fixed or Adjustable Adjustable
No of Handset Functions One
Min Operating Pressure 0.5 Bar
Max Operating Pressure 5.0 Bar
Hose Type Standard
Hose Length 1500mm
Hose Connection Type Nut / Cone
Overhead Material Metal
Overhead Size 200mm
Shower Arm Length 345mm
Handset Material ABS
Valve Handle Material ABS
Cool Body No
Body Material Brass
Max Operating Temperature 85°C
CE Marking Yes
DOP Yes
British Standard Yes
WRAS Approved Yes
WRAS Number 2010037
TMV Level TMV2
Packaged
Height 835mm
Width 425mm
Depth 153mm
Weight 5.5kg
Product
Height 800 / 1180mm
Width 265mm
Weight 5kg
