Ecstasy

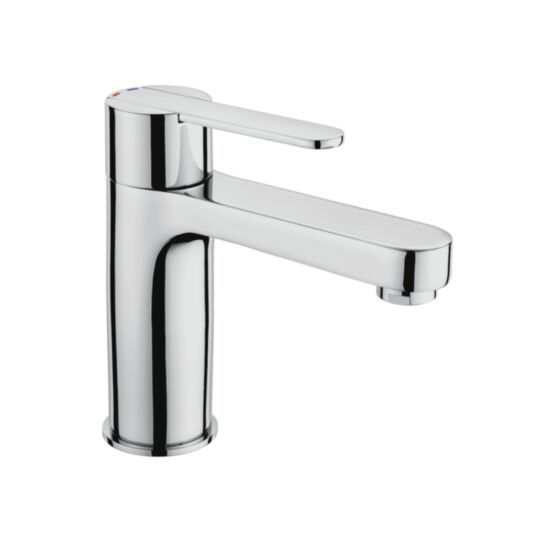

Mono Basin Mixer (Click Waste)
4E1052
£1.00 £1.00
  • 10 Year Guarantee
  • Low Pressure
  • Minimum 0.1 Bar Operating Pressure
  • Flow Straightener
  • Eco Aerator
  • Flexible Hose
  • Mushroom Click Waste
More Information
Guarantee 10 Years
Spout Material Brass
Fittings Metal Plate, Washer, Stud + Locking Nut
Connection M12 - DN8 Flexible hoses - ½" BSP thread ends
Flow Restrictors Supplied No
Max Static Pressure 16 Bar
Cartridge Size #30 Cartridge
Min Operating Pressure 0.1 Bar
Max Operating Pressure 60°C
Body Material Brass
WRAS Approved KIWA
WRAS Number 2309703
Water Label 5.3
Water Label Rating 5.3 l/min @ 0.2 bar
Packaged
Height 87mm
Width 167mm
Depth 245mm
Weight 1.8kg
Product
Height 150mm
Width 50mm
Depth 167mm
Weight 1.61kg

Supporting Documents
