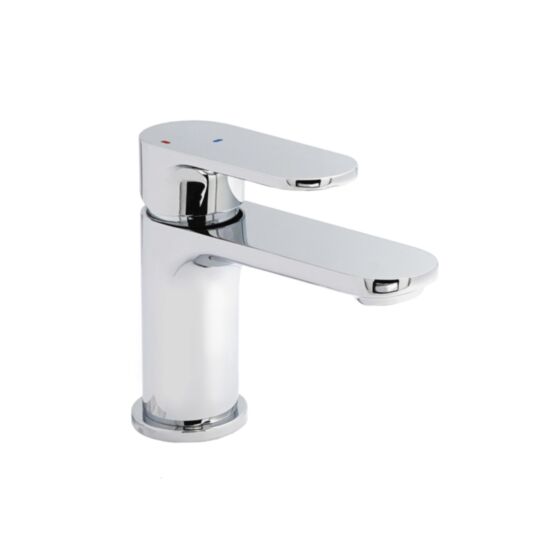

Broxa Curve

Mini Mono Basin Mixer (Click Waste)
4E6050
£1.00 £1.00
  • 10 Year Guarantee
  • Low Pressure
  • Minimum 0.1 Bar Operating Pressure
  • Maximum 6 Bar Operating Pressure
  • Flow Straightener
  • Flexible Hose
  • Mushroom Click Waste
  • Cold Open
More Information
Guarantee 10 Years
Spout Material Brass
Fittings Metal Plate, Washer, Stud + Locking Nut
Connection M10 - DN8 Flexible hoses with ½" BSP threaded ends
Flow Restrictors Supplied No
Max Static Pressure 16 Bar
Cartridge Size #35 Cartridge - Cold start
Min Operating Pressure 0.1 Bar
Max Operating Pressure 60°C
Body Material Brass
Water Label 3.3
Water Label Rating 3.3 l/min @ 0.2 bar
Packaged
Height 87mm
Width 170mm
Depth 240mm
Weight 1.6kg
Product
Height 123mm
Width 50mm
Depth 150mm
Weight 0.88kg
