Spring 2024 Instinct Bathroom Collection Brochure Out Now
Aline

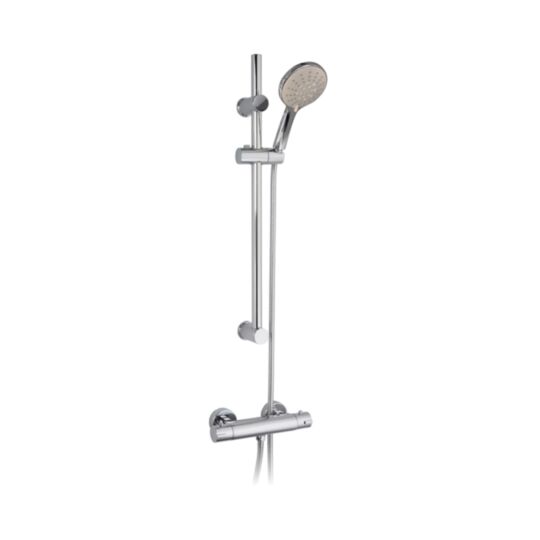

Single Outlet Thermostatic Shower Valve + Kit
INST-13040P
£1.00
£1.00
| Guarantee | 5 Years |
|---|---|
| Hose Material | Stainless Steal |
| Flow Restrictor | No |
| Max Static Pressure | 5.0 Bar |
| Hose Bore | 8mm |
| Handset Rub Clean | Yes |
| Fast Fix Kit Supplied | Yes |
| Valve Inlet Centre | 150mm |
| Valve Connection Dimension | 15mm |
| Safety Stop set at | 38°C |
| Adjustable Riser Rail | Yes |
| No of Handset Functions | Five |
| Min Operating Pressure | 0.5 Bar |
| Max Operating Pressure | 5.0 Bar |
| Hose Type | Standard |
| Hose Length | 1500mm |
| Hose Connection Type | Nut / Cone |
| Overhead Material | ABS |
| Handset Material | ABS |
| Valve Handle Material | ABS |
| Cool Body | Yes |
| Body Material | Brass |
| Max Operating Temperature | 85°C |
| CE Marking | Yes |
|---|---|
| DOP | Yes |
| British Standard | Yes |
| WRAS Approved | No |
| Height | 775mm |
|---|---|
| Width | 160mm |
| Depth | 80mm |
| Weight | 3.2kg |
| Height | 700mm (Riser Rail) |
|---|---|
| Width | 270mm |
| Weight | 2kg |
